# Enable Monitoring for a premium Data Source

**Overview**

**The Monitoring** feature provides the ability to receive notifications of changes that occur to content contained in specific **D&B data products** and **D-U-N-S Numbers**.

## Prerequisites

Check your CDQ apps account.

1. Log into the CDQ [Cloud Apps](https://apps.cdq.com)


|  |
|  --- |
| ![](/assets/auth1.69ceac19aff9aec9330cc1beda18e5bf60d84699d415ea6b4be08c7ac393b369.6fde6558.png) |


*No account?*

1. If your organization is already a CDQ customer, ask your internal point of contact to create a CDQ dedicated account or [request account](https://support.cdq.com). Account detail will be sent by email.
2. If your organization is not yet a CDQ customer, please [contact us](https://www.cdq.com/about/contact) to get started.


## Step 1. Contract with commercial data provider

The customer needs to have a valid contract with D&B for the desired product.

These are the names of the D&B products:

* **["DNB"](https://directplus.documentation.dnb.com/openAPI.html?apiID=cmpelkv2)**
* **["DNB_LNKELI"](https://directplus.documentation.dnb.com/openAPI.html?apiID=lnkeli)**
* **["DNB_MASTER_DATA_BASIC"](https://directplus.documentation.dnb.com/DataBlocks.html?apiID=dataBlocks&blockIDs=companyinfo_L1_v1)**
* **["DNB_MASTER_DATA_EXTENDED"](https://directplus.documentation.dnb.com/DataBlocks.html?apiID=dataBlocks&blockIDs=companyinfo_L1_v1,companyinfo_L2_v1)**


## Step 2. D&B Storage

Customer needs a data storage for the data from external provider.

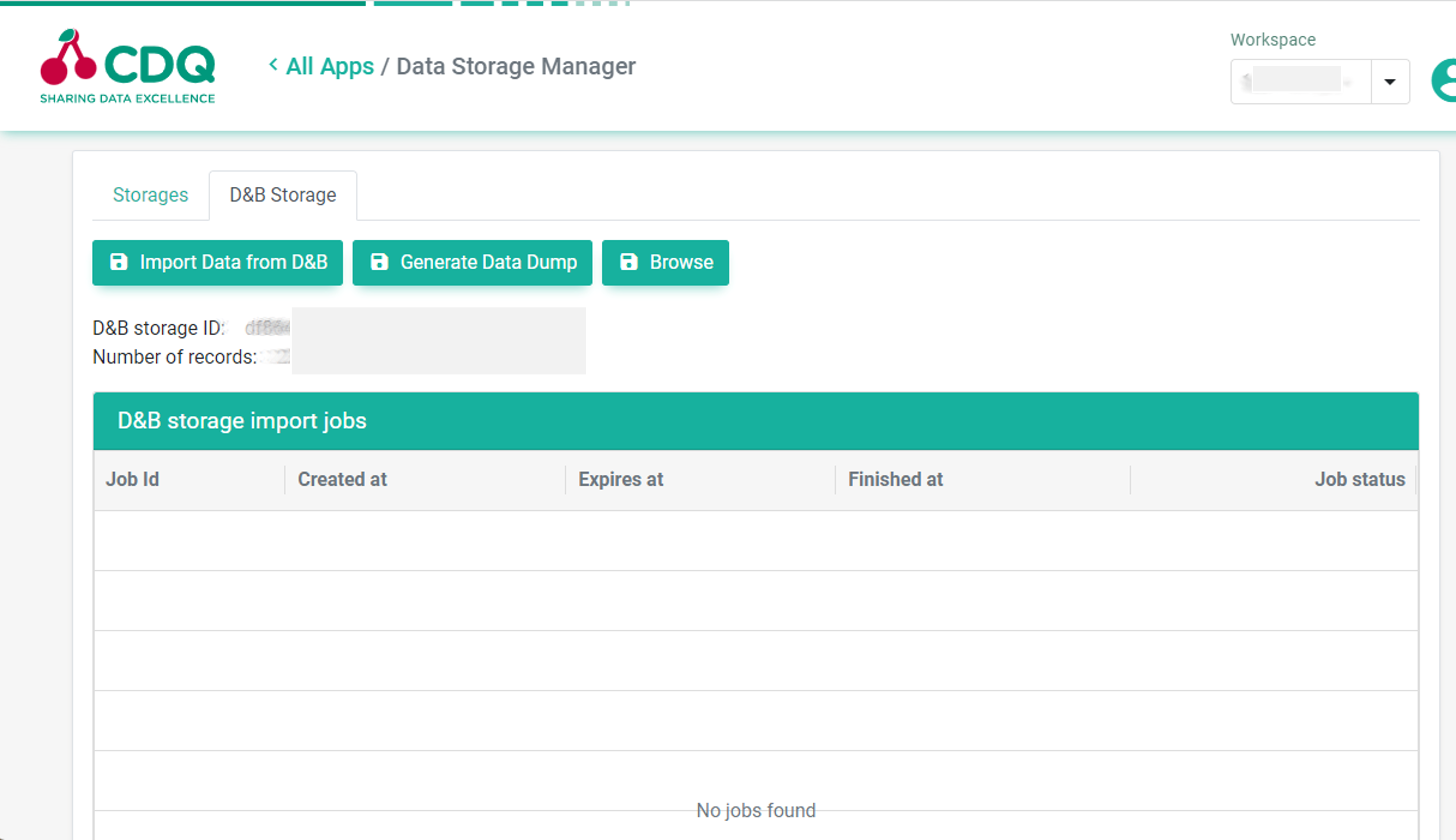

To check the **Storage ID** please go to **Data Storage Manager**:

![](/assets/dnb_storage.cb829aa42da12206254e30b5b4b477eb884f90ca133b632895c87351d2e09ceb.9b74f27d.png)

## Step 3. D&B monitoring.

Monitoring needs to be activated on D&B side.

[Here](https://directplus.documentation.dnb.com/html/guides/Monitor/CreateMonitoringRegistration.html) is a guidance from **D&B** describing **Monitoring Registration Process**

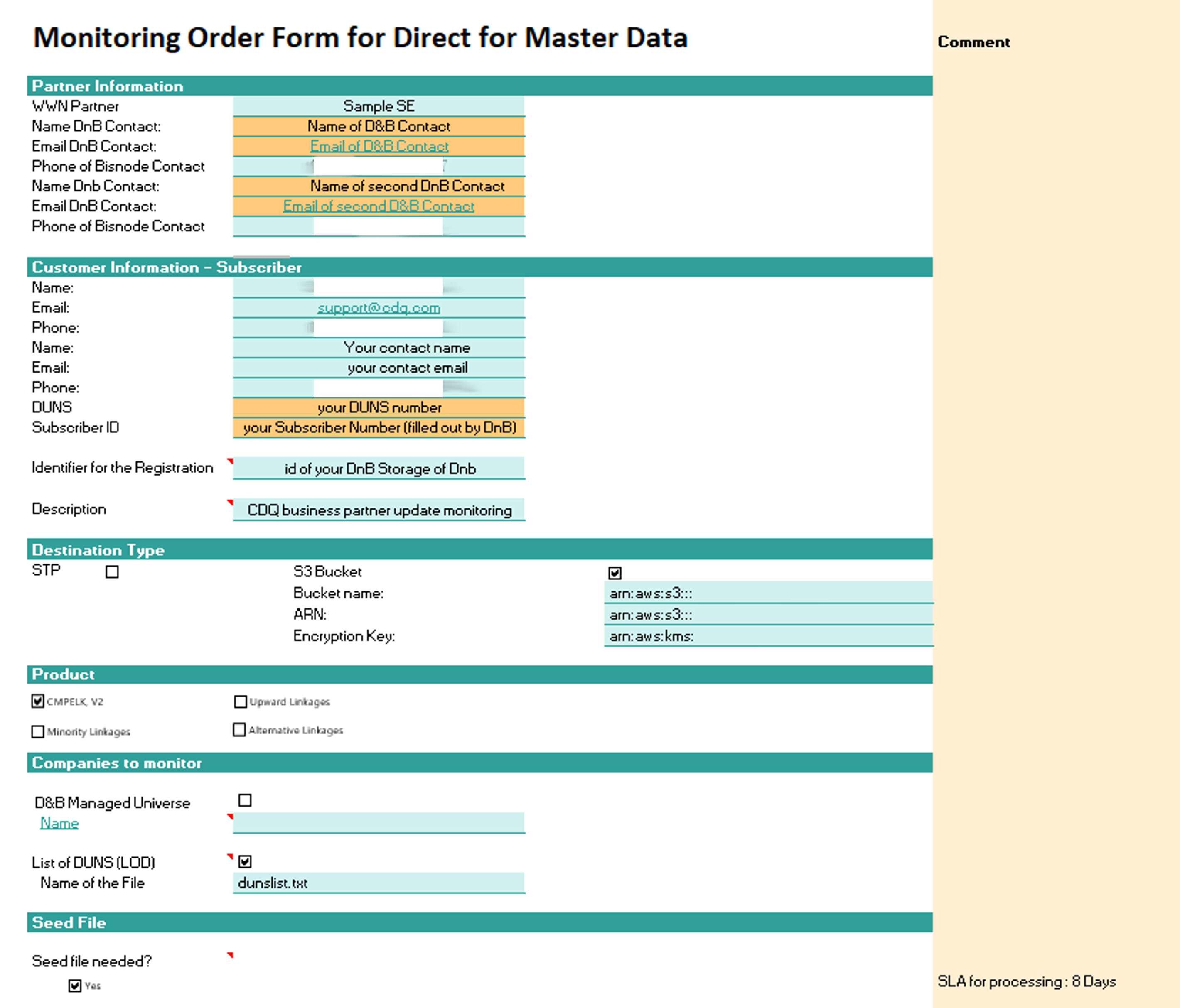

**Storage ID** needs to be put into the customerReference-Field in Monitoring-form and then this document need to be sent To **D&B**:

![](/assets/dnb_form.cd47987d88712f8f63d2e30344b7b6806092ed51b534f1a4d1d834dddfdba2a4.9b74f27d.png)

## Step 4. D&B credentials

Valid credentials provided by D&B must be configured in **Data Source Management**.

To configure valid credentials in **Data Source Management**:

* Enter provided **Client ID** and **password**
* Click **Save credentials** button
* Set Quotas (if needed)

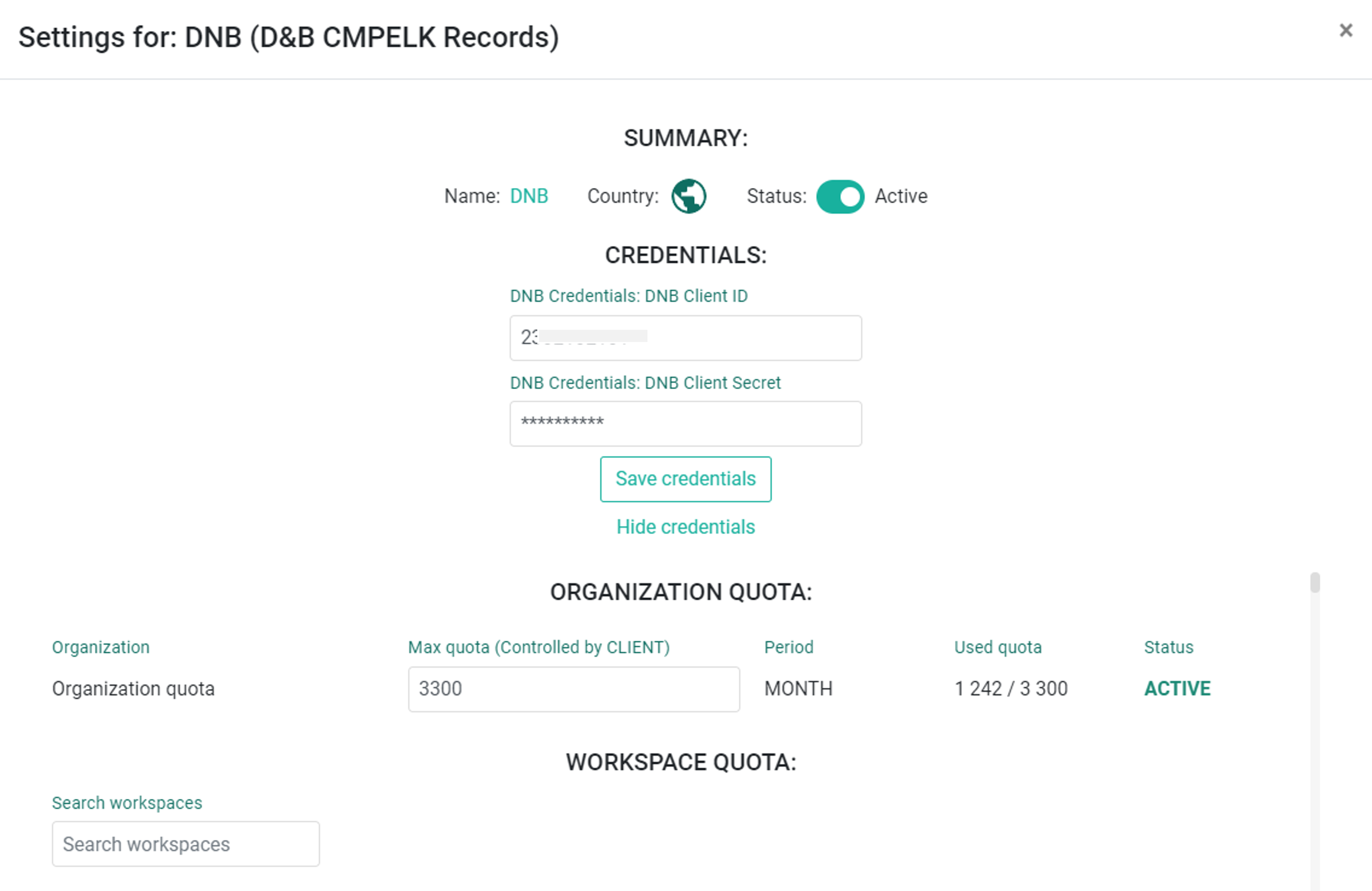

**[DNB](https://directplus.documentation.dnb.com/openAPI.html?apiID=cmpelkv2)**

![](/assets/dnb_settings.4fca4eea7540c8ea2d251ee9a93e38bcfdcae2b8bece9fbc3a98be93e0c08b00.9b74f27d.png)

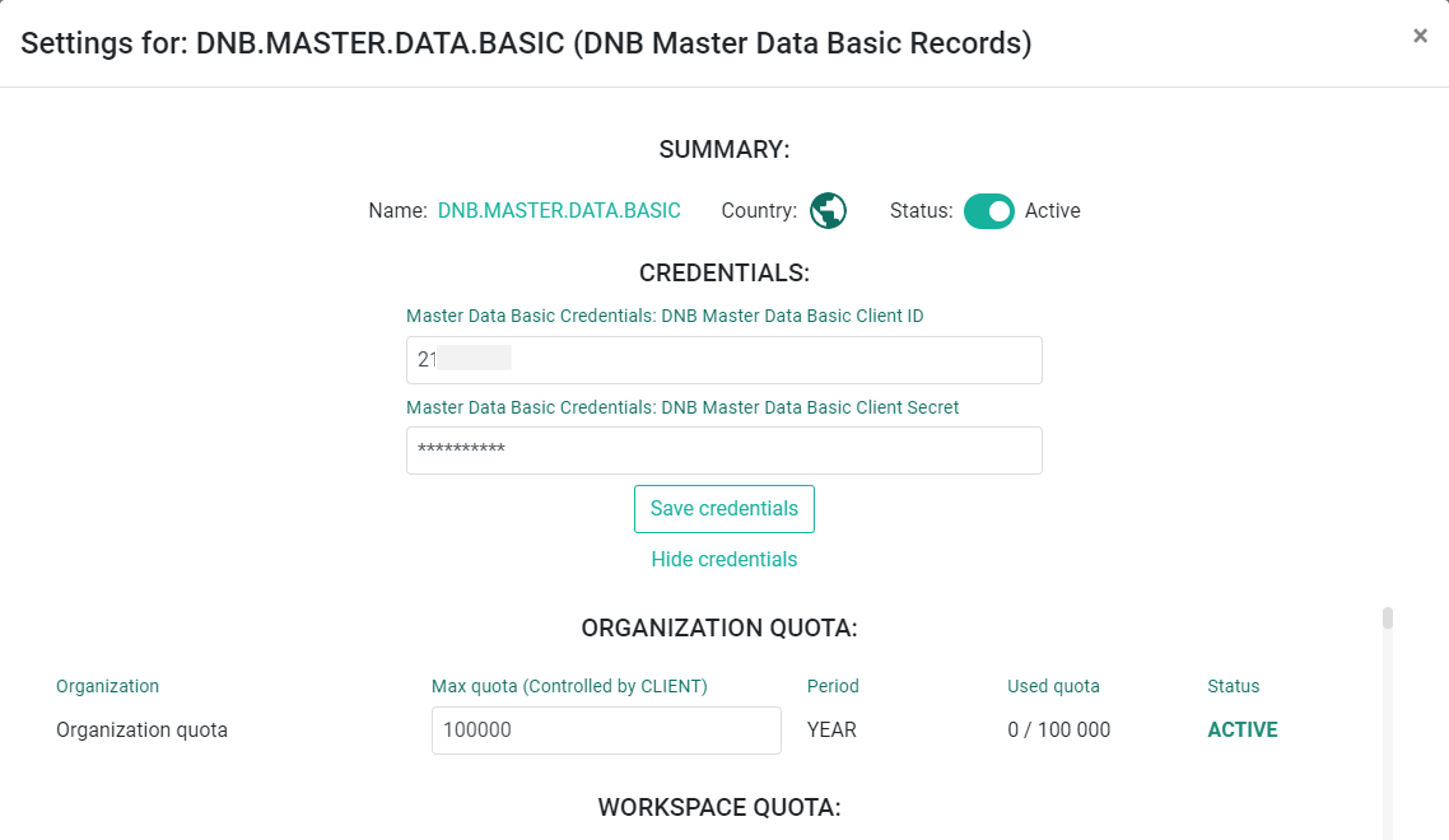

**[DNB_MASTER_DATA_BASIC](https://directplus.documentation.dnb.com/DataBlocks.html?apiID=dataBlocks&blockIDs=companyinfo_L1_v1)**

![](/assets/dnb_settings2.1826d0d492e0ed9cac3094829aea01f3191eef538521d0921f0a02dd356c77b3.9b74f27d.png)

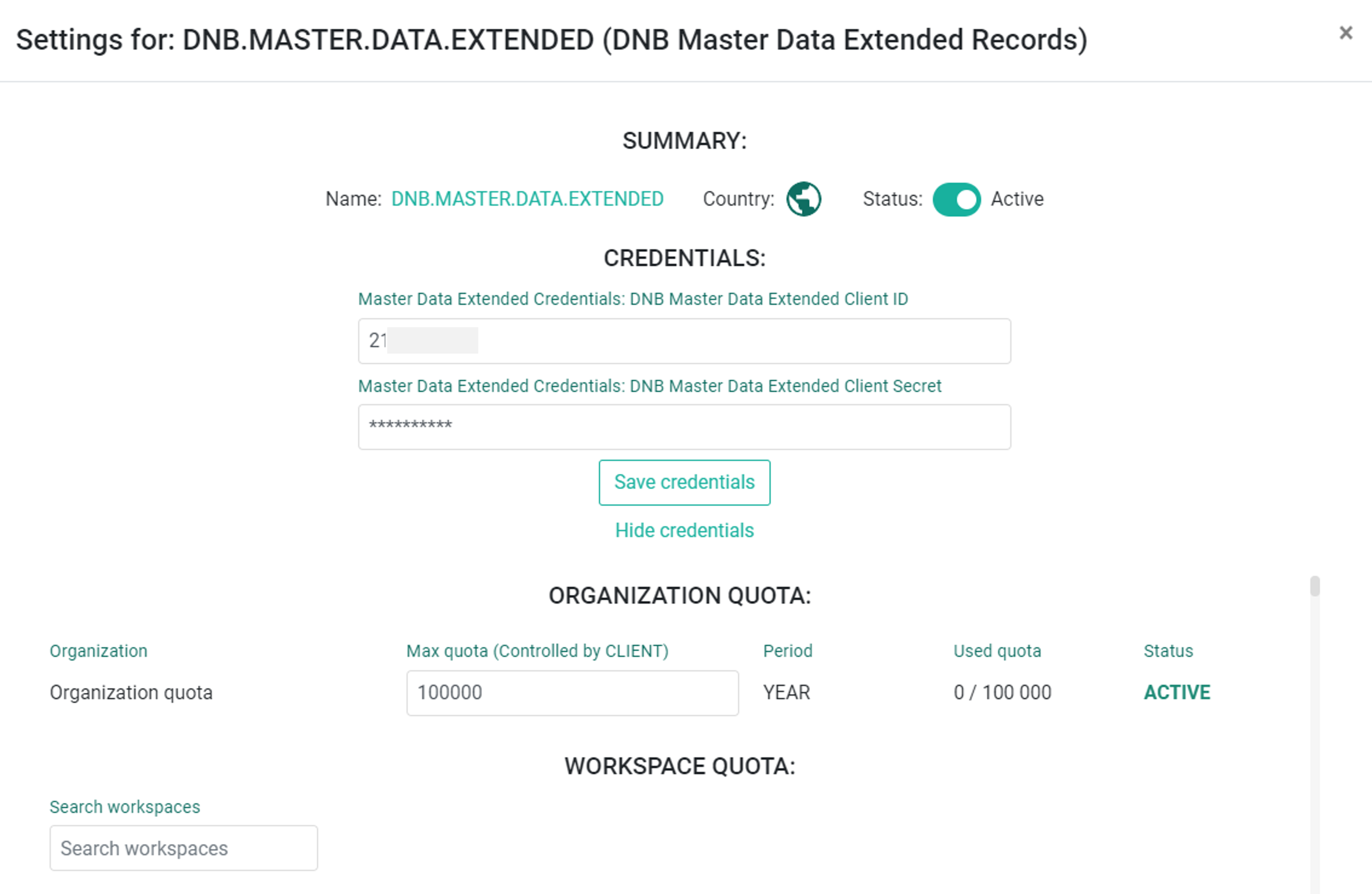

**[DNB_MASTER_DATA_EXTENDED](https://directplus.documentation.dnb.com/DataBlocks.html?apiID=dataBlocks&blockIDs=companyinfo_L1_v1,companyinfo_L2_v1)**

![](/assets/dnb_settings3.63b970aeba6bd8eba8d76e96f201b1e2005af779bb84c9bc74dfb65327529764.9b74f27d.png)

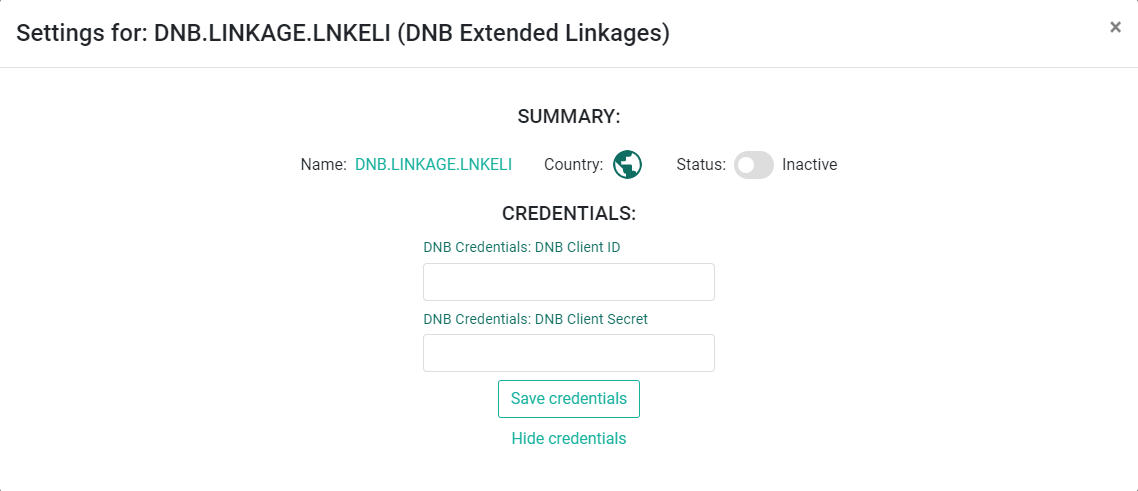

**[DNB_LNKELI](https://directplus.documentation.dnb.com/openAPI.html?apiID=lnkeli)**,

![](/assets/dnb_settings4.5fe0dc4bb90610f7e1144cf1c42b5a59b784efbc14a6c3d159d6bc398e9832c6.9b74f27d.png)

## Step 5. Update monitor configuration

Specific Data source needs to be added a **Monitoring Source** inside the **Update Monitoring Configurator App**.

Please Note that **D&B** has various products that can be monitored:

* **CMPELK**
* **LNKELI**
* **MASTER DATA BASIC**
* **MASTER DATA EXTENDED**


Once monitoring is activated, all records with correct **DUNS-ID** and **external ID** will be subscribed to the external monitoring.

Specific Data Mirror must be selected:

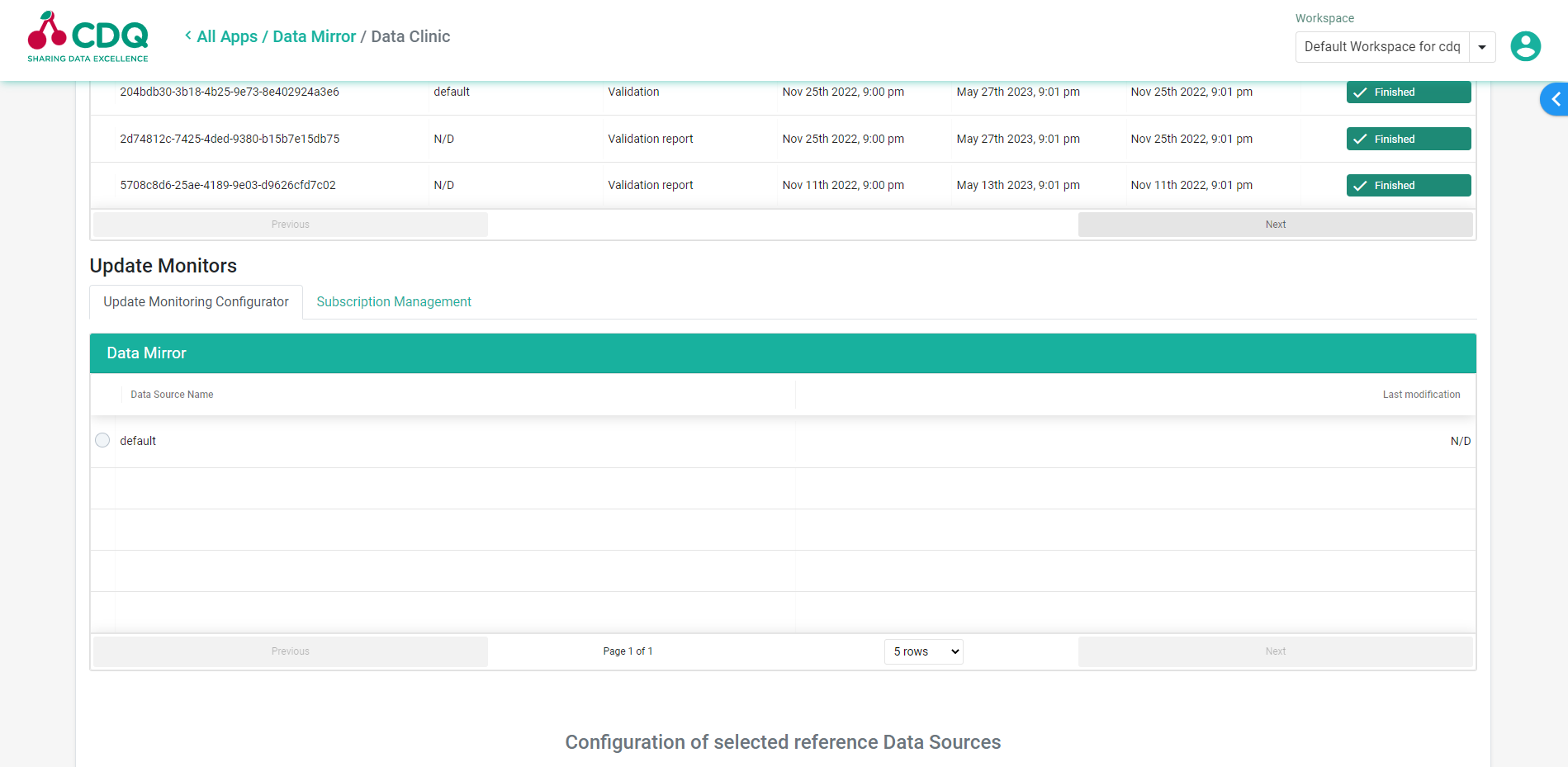

* Go to **Data Clinic app**
* Select **Data Source**


![](/assets/data_clinic.49cd38bf1416ec3e9c835aac4ff06862c201c5a5b0c6f2bc80ed9b1e60d7b7e5.9b74f27d.png)

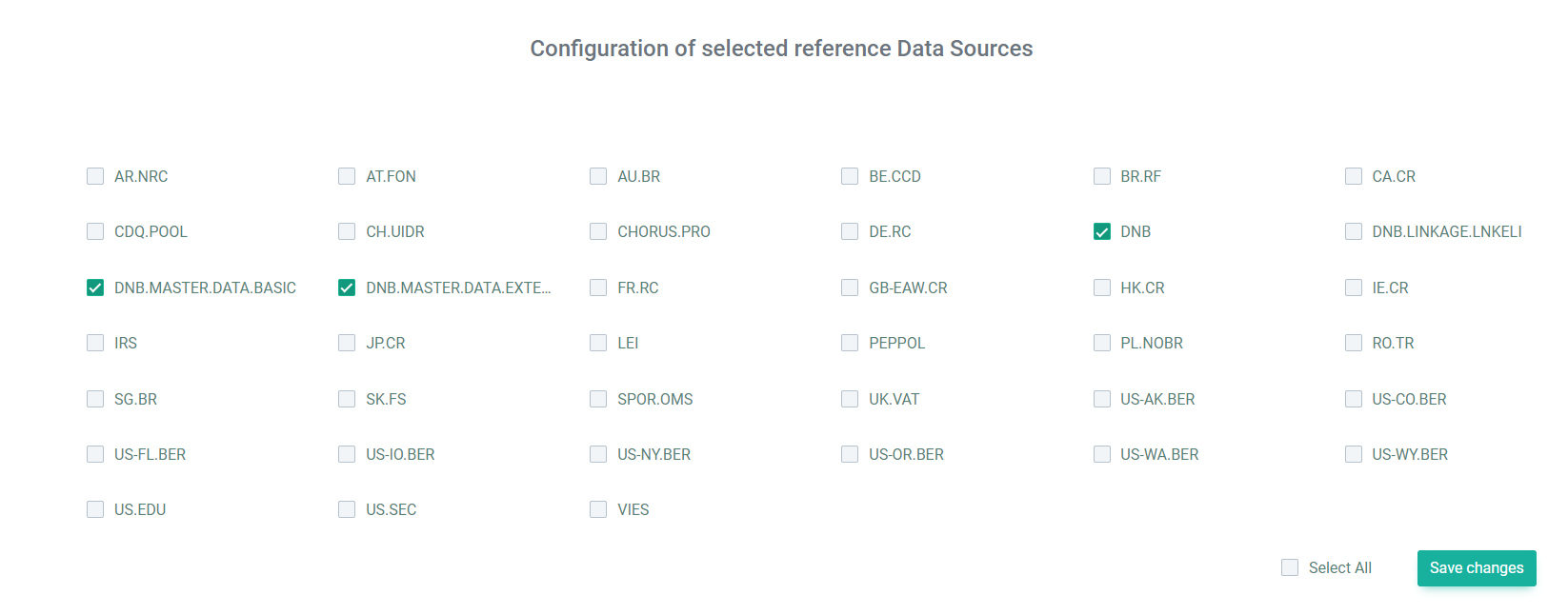

* Update your **Update Monitors** by selecting desired reference **Data Sources**


![](/assets/selected_data_source.a7c1fa22f4e0f77a00db6da2dfb0076c73d28077d93ab90aa3cda983ac39737c.9b74f27d.png)

## Step 6. Updates visibility

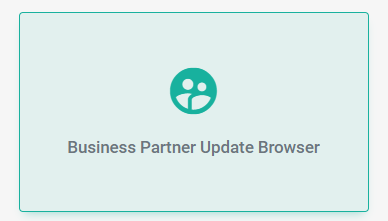

Incoming business partner updates are visible in the **Business Partner Update Browser**.

![](/assets/bp_update_br.27be7ac4dbecedd94e7b5030e8028cccd6eaf60b2eaf0a1cb6cf28bbf4d00d8b.9b74f27d.png)

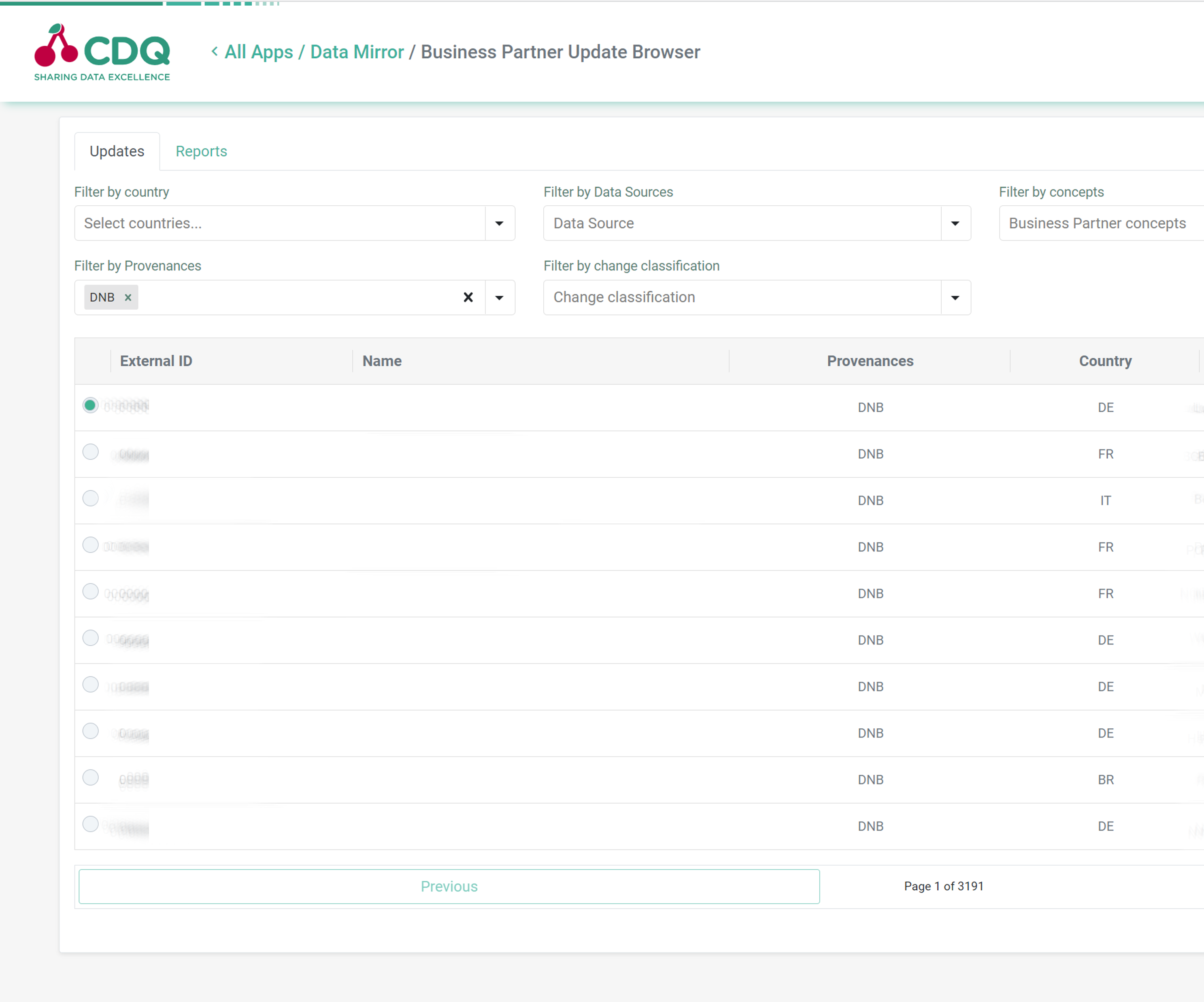

**The specific D&B products** need to be added in **Filter by Provenances**.

![](/assets/bp_u_m1.7671de84078e6f6c2b980e4642cdfed757147cc17499bd76e5a6ac0a002b1c0a.9b74f27d.png)

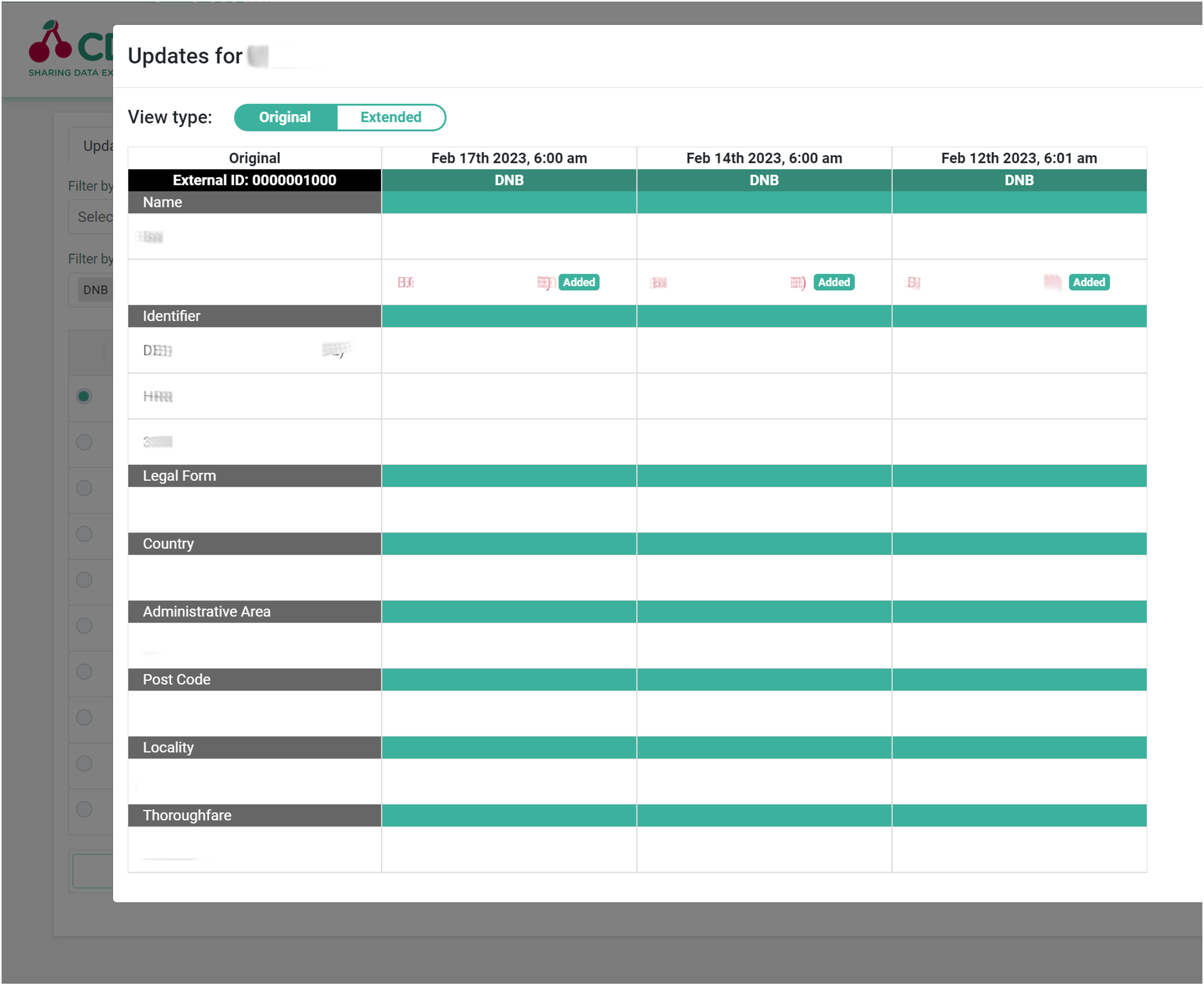

More details can be checked by clicking **Browse Updates**.

![](/assets/browse.e12b5b74e13163bedef8fb4aa19f4f6c3ba86b43bddabc70e2b714dd98cc4c2f.9b74f27d.png)
